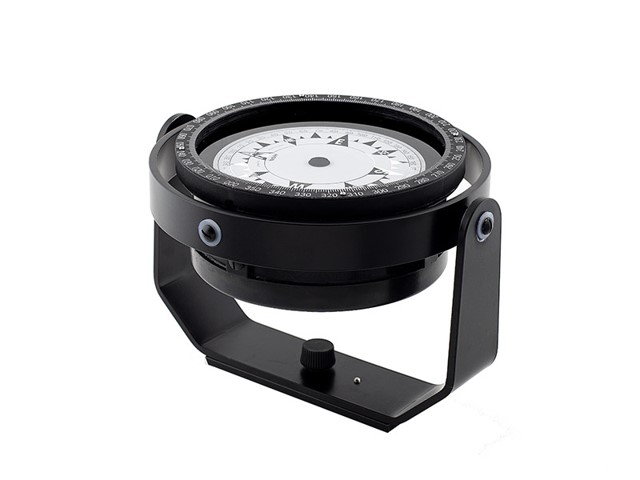

Bracket-Mounted Compass

125mm card Class A compass
1 degree graduation
Marine grade aluminium binnacle
Quadrantal correctors for steel hull
Exclusive 10 years warranty
Powerful DirectiveForce Magnets for Fast Heading Lock-on
Mounting deck shoe for easy installation
Bulkhead or panel installation
Physical

Weight: 3,5kg
Dimensions: H161mm; W+arms 222mm; D200mm
Platform base Ø: 140mm x 50mm
Construction: Marine grade aluminium 6060
Finish: White (RAL 9016) semi-gloss Powder Coat
Operational

Magnetic moment: 1.1 Am2
Directional error: < 0.5 degrees
Environmental

IEC 60945 Equipment category: Exposed Area
Operating temperature: -30ºC to 60ºC
Compass safe distance: Read ISO25986:2019 Annex F
Approvals

MED/SOLAS
USCG
UK MER
ISO 9001 certified management system
ISO 25862:2019
IEC 60945:2018
IMO Res. A 694 (17)
IMO Res. MSC.36 (63)-(1994 HSC Code) 13
IMO Res. MSC.97 (73))-(2000 HSC Code)13)
IMO Res. MSC.302 (87))
Type Approval: RINA
