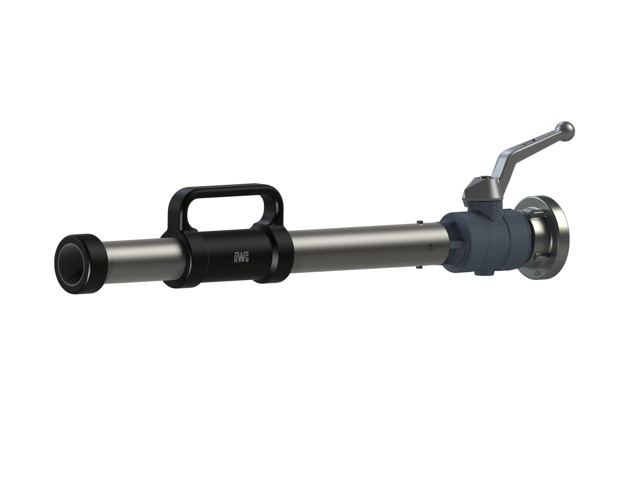

Heavy Foam Nozzle AWG S2-G2 with brass Storz C-52

Heavy foam nozzle S2-G2 to operated with foam indutors Z2

Heavy foam nozzles are used for the application of extinguishing foam, in particular for the application in the form of low expansion foam. The water/foaming agent mixture is foamed by absorbing air and is applied in a free jet.
Heavy foam nozzles are used together with the AWG foam inducturs Z2, Z4 and Z8

Pipe made of stainless steel, protection rinf and handle made of rubber.
Throw distance: 23 meter
To be operated with foam inductor

Technical data:
- Width [mm]: 88
- Weight [kg]: 2.3
- Inlet: BSP G 2'' AG
- max. permissible operating pressure [bar]: 16
- Material Adapter: Aluminium
- Flow rate at reference pressure p1: 200
- Shut-Off-Valve: Yes
- Reference pressure p1 [bar]: 5
- Applicable Standard: EN 16712-3
