SCBA set - 3M Scott Sigma - (set without cilinder) MED/SOLAS

SKU: 4.10.0210
On request
+ -
Product Files

SCBA set - 3M Scott Sigma - (set without cilinder) MED/SOLAS

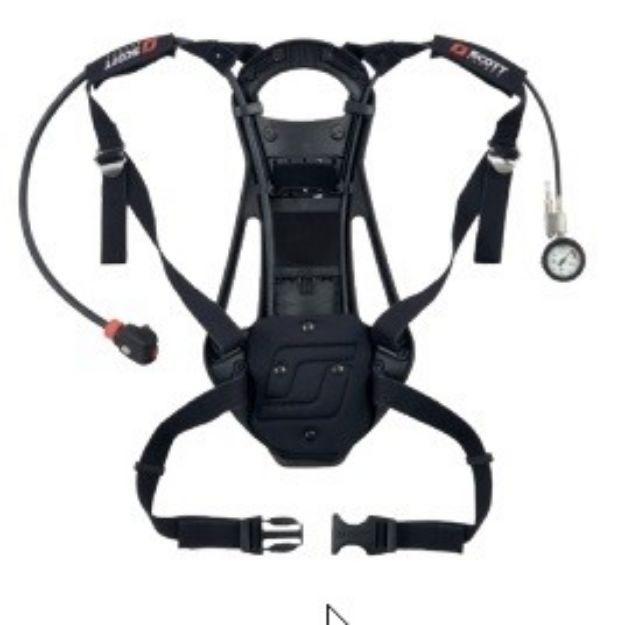

The 3M™ Scott™ ProPak Sigma is a Type 2 open circuit, self-contained, compressed air breathing apparatus. It consists of a back plate, unpadded carrying harness and pneumatic system, containing a cylinder connector, reducer, pressure gauge, whistle and demand valve.The ProPak Sigma can be configured in a number of different ways with various size single cylinders. There are also a range of variants available including Airline (AC), Split Demand Valve Coupling (SDC) and Y Piece configurations (Y2C).
The ProPak Sigma is used in conjunction with a range of composite or steel cylinders and the choice of Vision 3 or Promask PP facemask.

Applications
The 3M™ Scott™ ProPak Sigma is designed as a marine/industrial fire-fighting SCBA, but is also suitable for providing respiratory protection in any IDLH (Immediately Dangerous to Health and Life) environment.

Maintenance/cleaning/servicing
Cleaning should only be carried out as specified in the user instructions. Maintenance and servicing must only be performed by trained personnel following the procedures in the service and maintenance manual

Products specifications
Attribute name Attribute value
Certificeringen
SOLAS Yes
MED Yes
RED ENSIGN/MER No
EC003581 - SCBA (BA sets)
Type / model Scott Sigma
Width (mm) () 285
Height (mm) () 630
Depth (mm) () 220
Weight (kg) () 3.2
Type / model of facepiece Full face mask
Weight head mask (kg) () 0.75
Size of facepiece L
Connection type mask Bayonet
Nomial service time (min) () 0
Oxygen bottle volume (ltr) () 0
Oxygen bottle pressure (bar) () 0
Oxygen bottle material -
Service interval (months) (months) 12
*
*
*
*
